7' x 30' Cathedral Window Sidewall

7 x 30 Cathedral Window Sidewall for Elegant Visibility and Weather Protection

7 x 30 Cathedral Window Sidewall is a premium tent sidewall designed to bring natural light and visual appeal to professional event installations while maintaining durability and enclosure. Featuring cathedral-style window panels, this sidewall enhances the guest experience by opening sightlines to the surrounding environment without fully exposing the tent interior.

Built for event rental companies, venues, and professional install crews, this 30 foot sidewall spans a full tent bay and integrates seamlessly with standard rope line sidewall systems. The combination of clear window sections and solid vinyl construction allows crews to create refined layouts that balance visibility, comfort, and protection.

Why Cathedral Window Sidewalls Matter

Cathedral window sidewalls help transform the look and feel of a tent by allowing daylight to enter while preserving a defined perimeter. The arched window design adds architectural interest and a sense of height, making tents feel more open and inviting. When used alongside solid sidewalls, window panels give installers flexibility to customize tent layouts for weddings, receptions, and upscale outdoor events.

Key Features

• Cathedral-style windows for enhanced visibility and visual appeal
• Double-polish clear PVC vinyl window panels
• Non-scratch window line layer between window sections
• Integrated into 16 oz block-out vinyl sidewall for durability
• Color-coded tabs for fast and accurate length identification
• Side release buckles along vertical edges for secure connections
• Overlapping sidewall design to reduce wind and rain intrusion

How the 7 x 30 Cathedral Window Sidewall Is Used

Step 1: Attach to the Rope Line

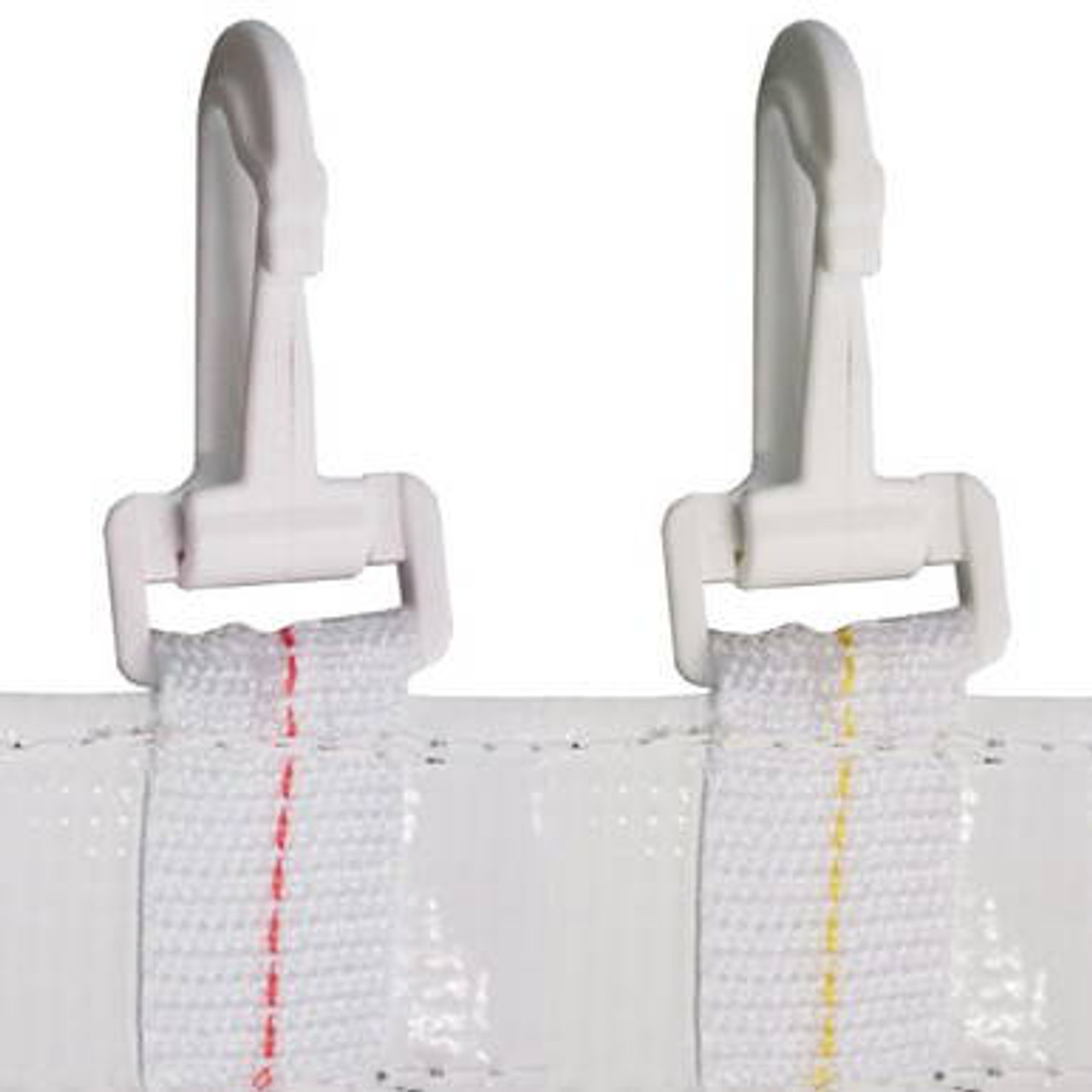

Secure the sidewall to the tent rope line using spring clips through the built-in tabs along the top edge. The tabs are color coded to help crews quickly identify the correct 30 foot panel length.

Step 2: Align the Window Panel

Position the cathedral window section evenly across the tent bay. Proper alignment helps ensure a clean appearance and consistent overlap with adjoining sidewalls.

Step 3: Connect Adjacent Sidewalls

Overlap the vertical edges with neighboring sidewalls and connect them using the side release buckles. This connection helps minimize gaps and improves resistance to wind and rain.

Step 4: Secure the Bottom Edge

Anchor the bottom edge using compatible staking or weighting methods based on site conditions. Proper bottom anchoring improves stability and overall sidewall performance.

Step 5: Final Inspection

Inspect all tabs, clips, and buckles to confirm they are secure. Ensure the window panels are clean, evenly tensioned, and seated correctly before the event begins.

Specifications

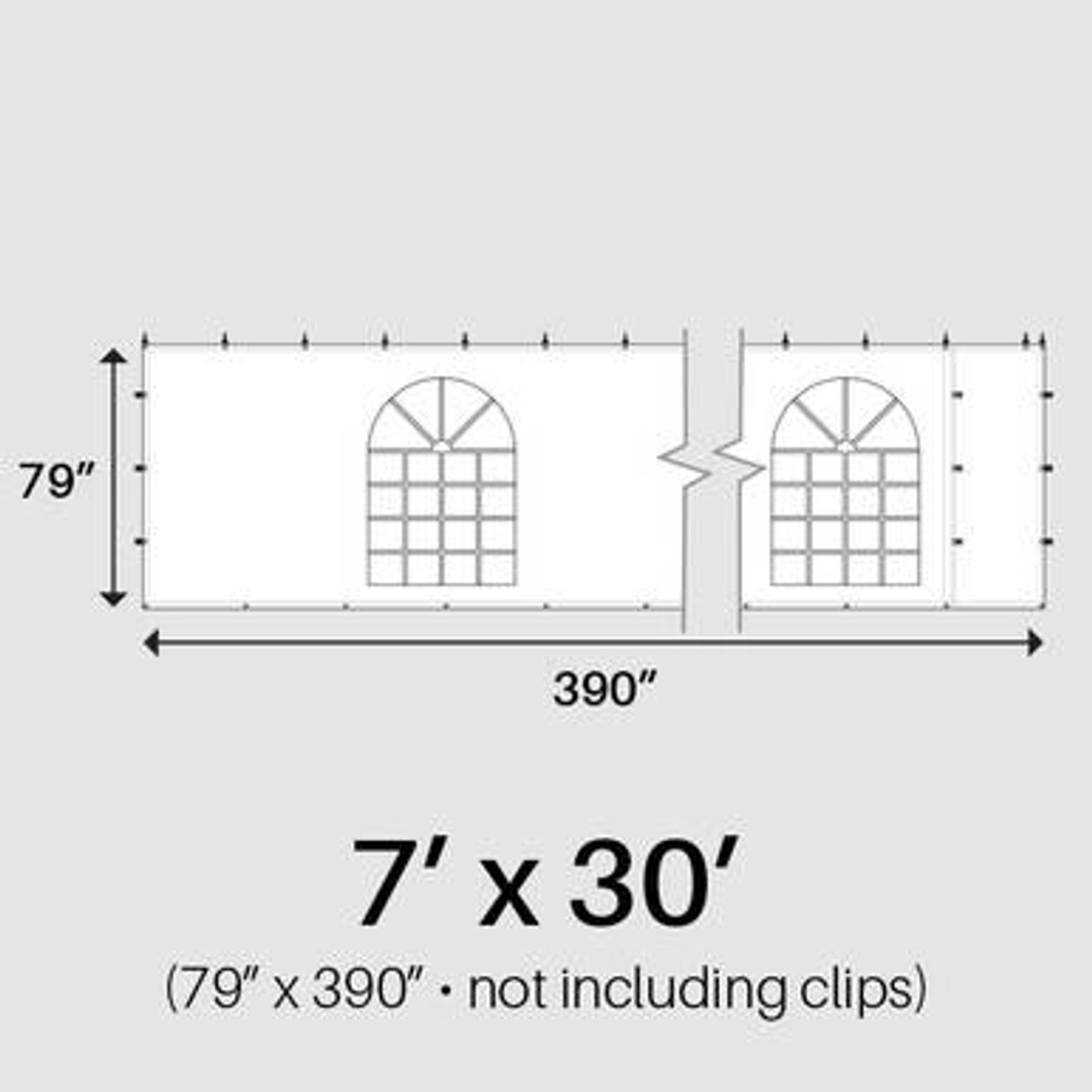

• Size: 7 foot x 30 foot
• Window Material: Double-polish clear PVC vinyl
• Window Protection: Non-scratch window line layer
• Sidewall Material: 16 oz block-out vinyl
• Top Attachment: Color-coded tabs for spring clip connection
• Vertical Connections: Side release buckles

Compatibility

• Frame tents and pole tents with rope line sidewall systems
• Most manufacturers' tent structures
• Sidewall configurations requiring 30 foot bay coverage

What Is Included and What Is Not

• Included: One 7 x 30 cathedral window sidewall with tabs and buckles
• Not Included: Spring clips, stakes, weights, rope line, or additional sidewall panels

Ideal For

• Weddings and formal events requiring natural light
• Receptions and celebrations with scenic surroundings
• Event rental company window sidewall inventory
• Tent layouts combining solid and window sidewalls
• Installations where appearance and weather protection must work together

Usage Notes

The 7 x 30 Cathedral Window Sidewall is intended for professional tent installations where visual impact and performance are equally important. Always overlap and buckle adjoining panels to reduce wind and rain intrusion. While compatible with most tent systems, verify attachment hardware before installation. Regular inspection and careful handling of window panels, tabs, and buckles help maintain clarity, durability, and consistent performance across repeated setups and teardowns.
