1 Way End Rail Fitting

  • SKU: F211WERF
    14.99
  • $14.99
102
In Stock

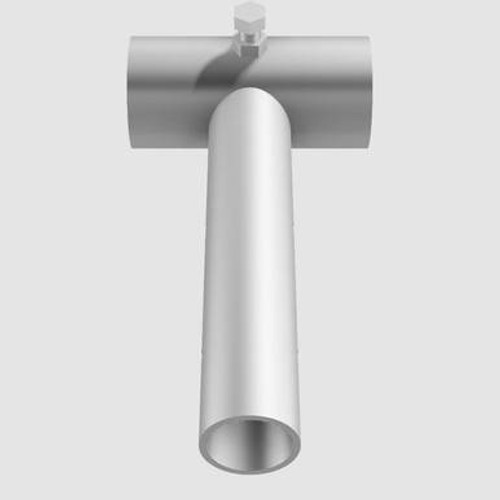

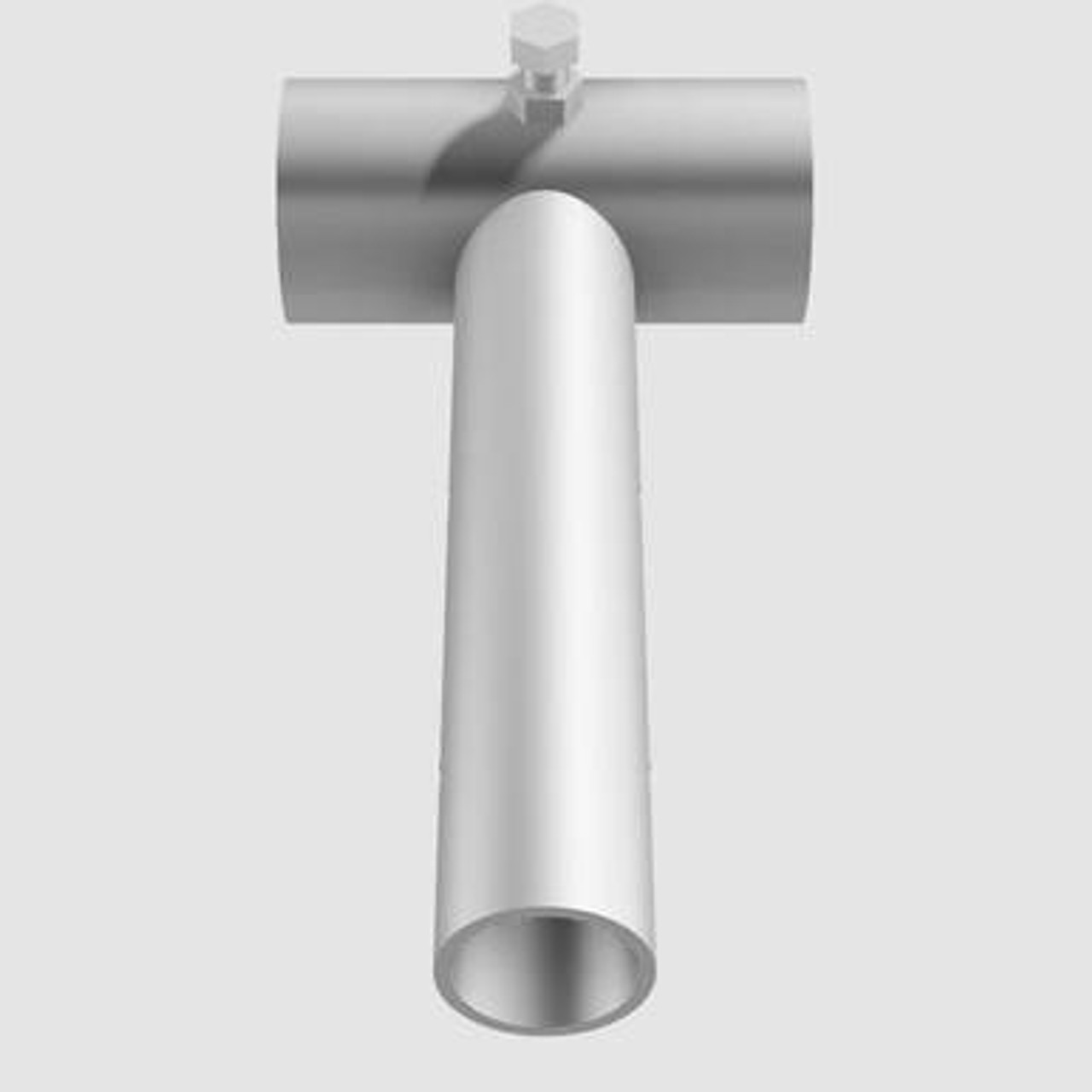

Made from 1.25" schedule 40 steel pipe, the 1 Way End Rail Fitting is used to support one end of spreader tubing that combines with fabric to create a rail skirt. The single protrusion has the standard holes that are on West Coast Style Frame fittings and tubing, allowing you to connect the rail tubing using any pin fasteners. The large opening on the fitting accepts 1.75" - 2.00" diameter leg tubes; once the fitting is slid onto the leg, it's brought to the desired height and secured by tightening the bolt that is on the fitting itself. 1 Way End Rail Fittings are zinc coating, granting them additional resistance to corrosion over time.



Steel Specifications
Outside Diameter 1.656" 4.206 cm
Inside Diameter 1.38" 3.505 cm
Wall Thickness 0.14" 3.56 mm
Weight 3.0 lbs. 1.36 kg
Strength 45,000 PSI 3,163.81 kgf/cm2

1 Way End Rail Fitting - West Coast Style Frame Tent

Celina West Coast Style Frame Tent - Tubing & Fitting Overview

Subscribe to the Celina Tent YouTube Channel:

Celina guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply.
